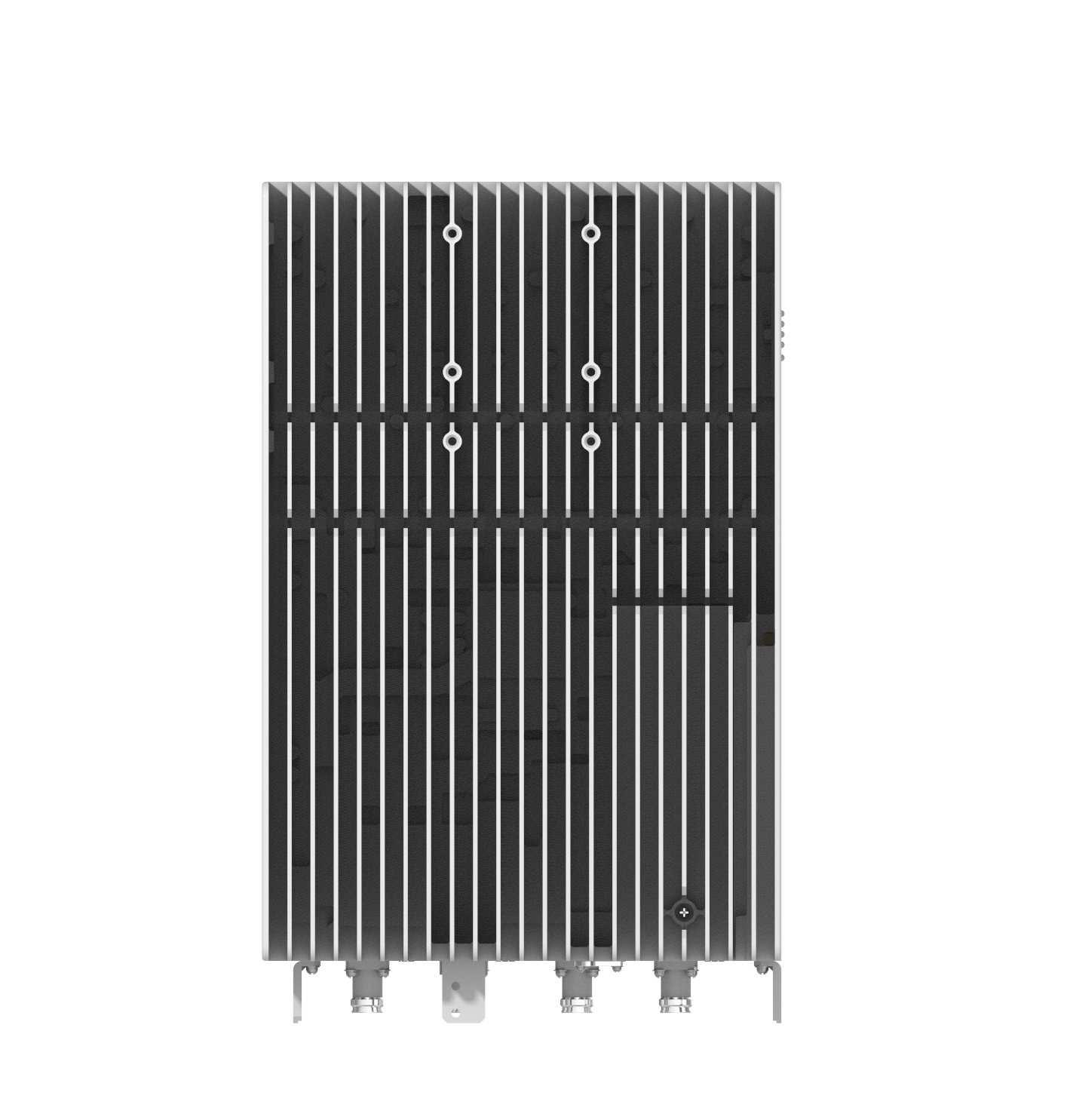

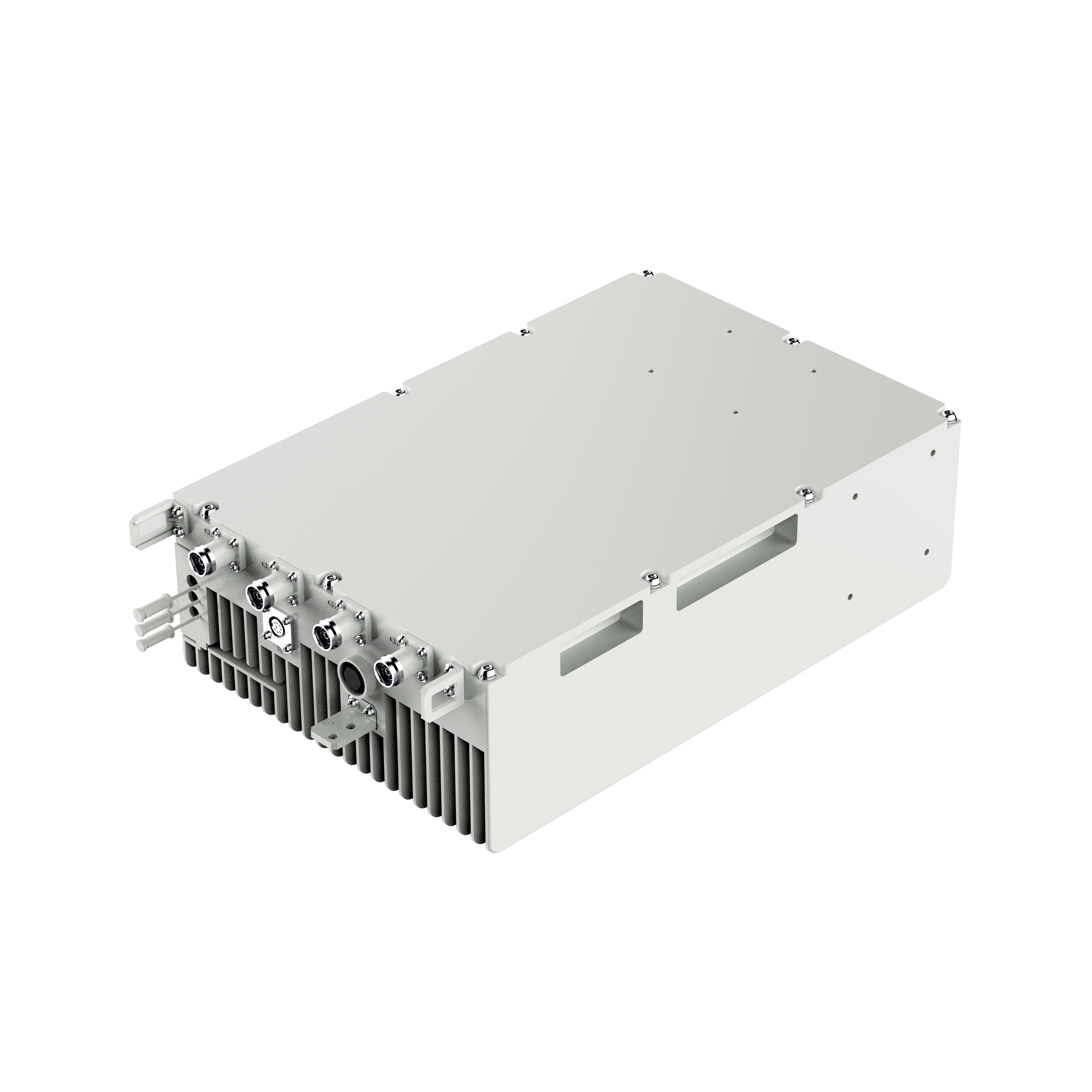

ORU-H is High Power Remote Unit which can be deployed in O-RAN solution, supporting Split 7.2 interface protocol. ORU-H can connect to virtualized CU/DU directly.
Low construction cost
Flexible installation
High-density coverage
| Technology | LTE&NR |
| Frequency Range | Support 1700 MHz – 4200 MHz |
| Carrier Bandwidth | LTE：5/10/15/20 MHz NR：5/10/15/20/30/40/50/60/70/80/90/100M |
| Carriers | LTE: 2@4T4R, 4@2T2R NR: 2@4T4R, 4@2T2R |
| Output Power | 4*46 dBm |
| Maximum Power | 530W |
| Synchronization | G.8275.1, SyncE |
| EVM | <3.5% @ 256QAM |
