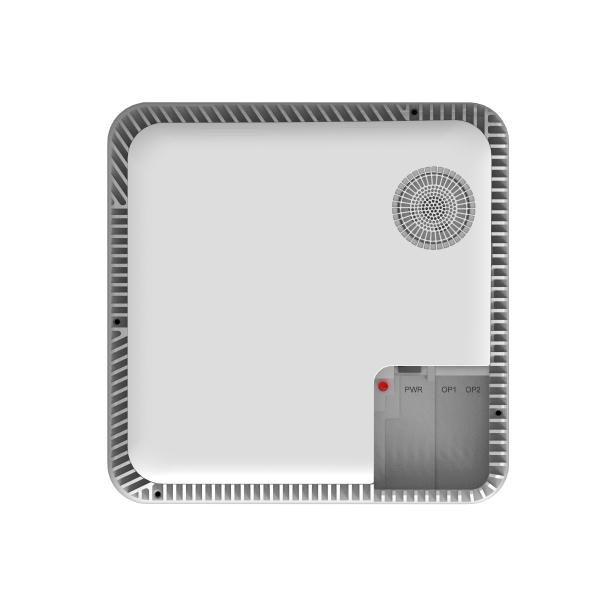

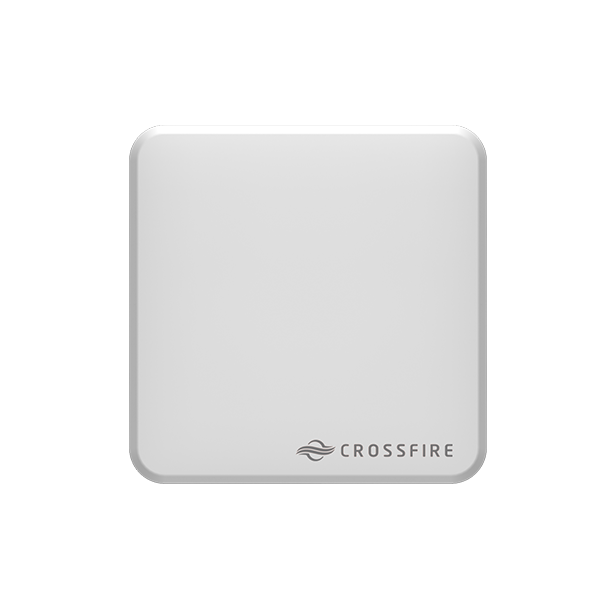

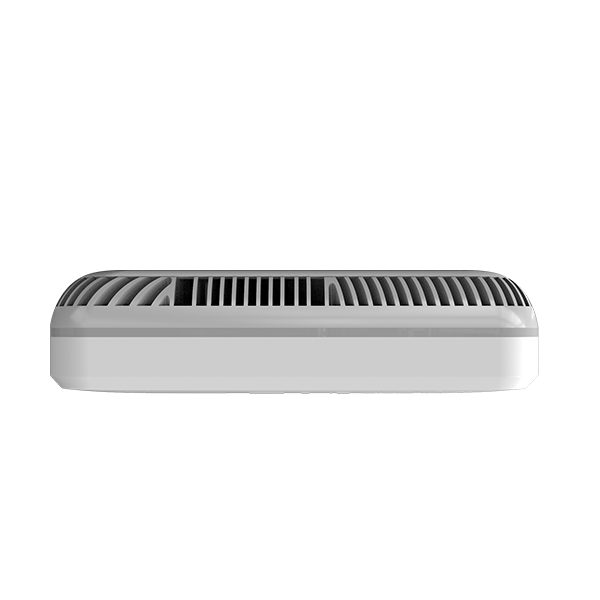

CrossFire N2RU (Nano Power Remote Unit 2.0) connects to the A2/E2 via optical fiber and converts the digital signals from A3/E3 into RF signals, which are then transmitted through antennas. Each N2RU supports 8 channels, with each channel capable of handling a bandwidth of 100MHz, with comprehensive frequency band support and flexible networking options. There are versions with both external and internal antennas. Using the EU-S, it can be upgraded to support O-RAN.
Low construction cost
Flexible installation
High-density coverage
| Frequency Range | Support 600 MHz - 3800 MHz |
| Channels | 8 RF Channels per device; Up to 100 MHz IBW per channel |
| Output Power | 20 dBm |
| Band and Channel Selective Mode | Supported |
| Cascading | Supports up to 6-level cascading |
| Antenna | Integrated Antenna / External antenna |
