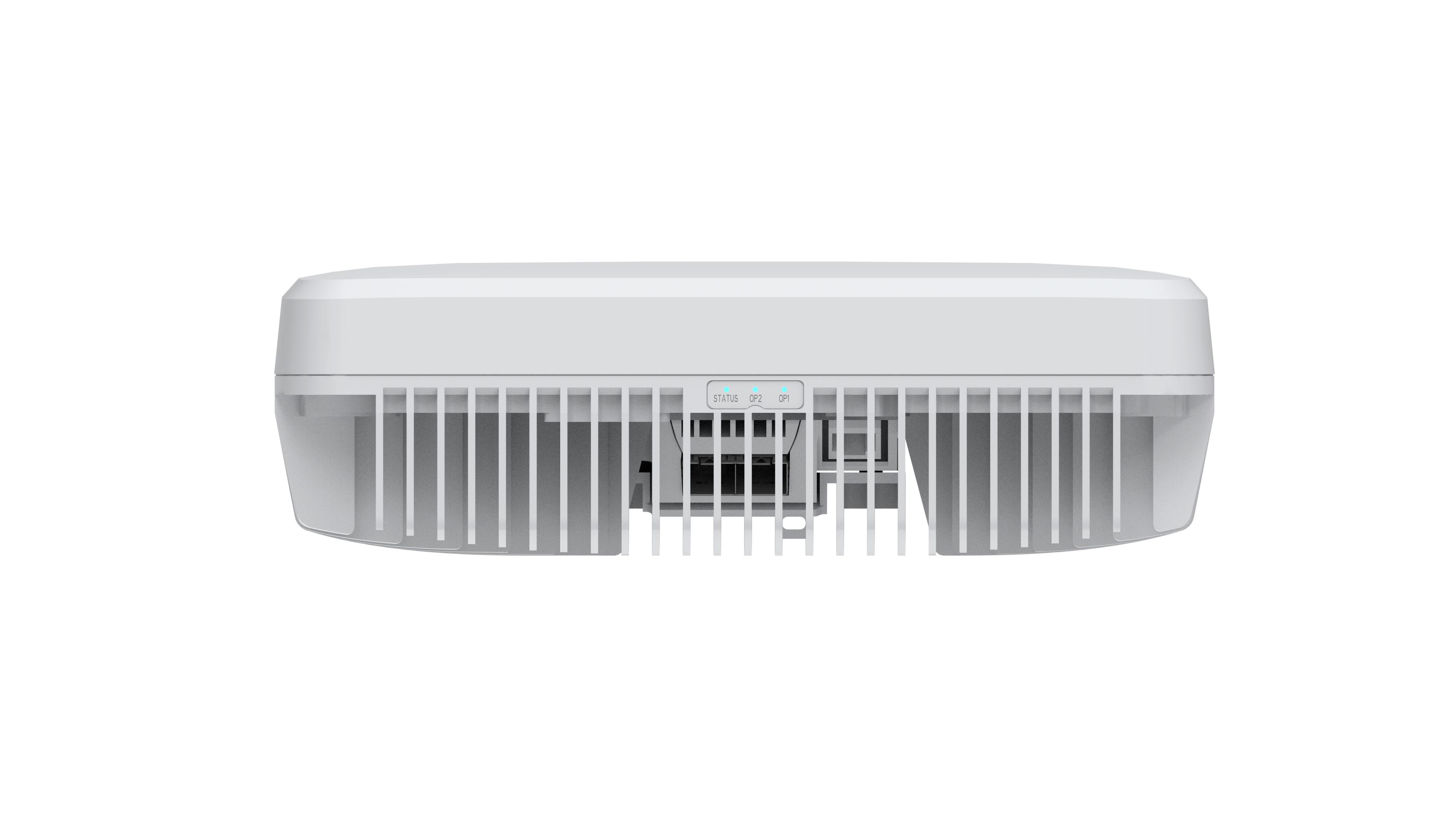

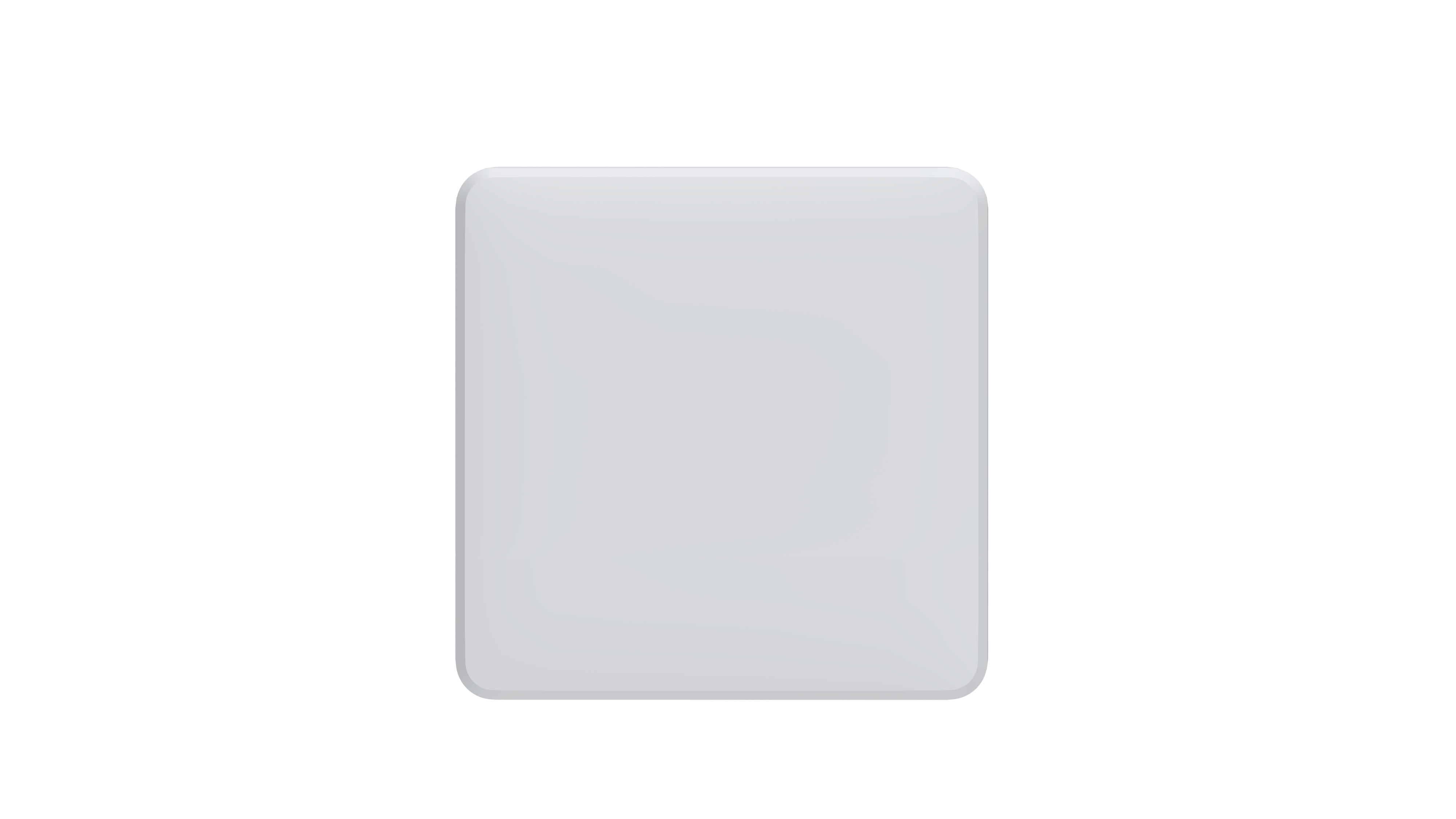

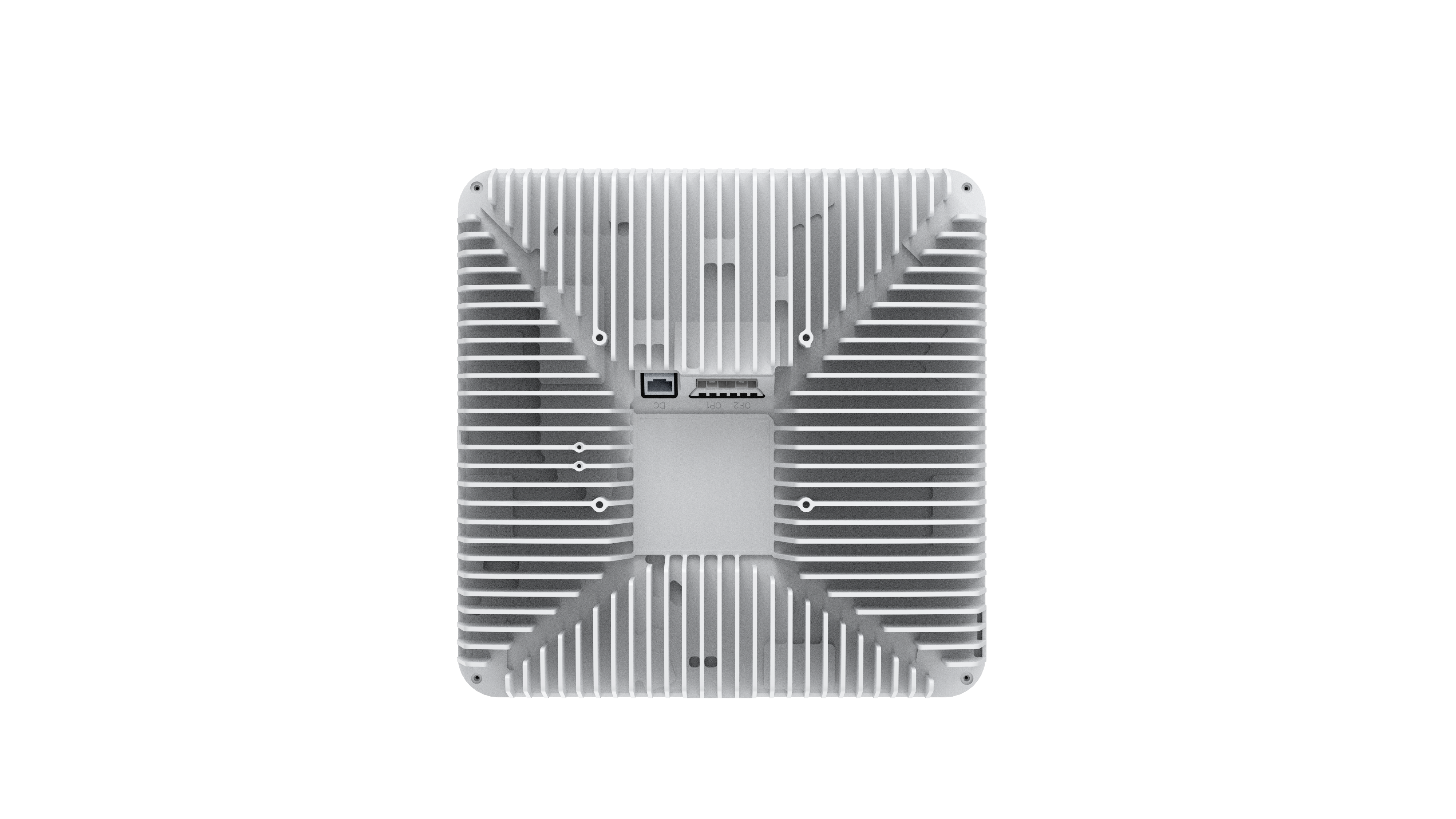

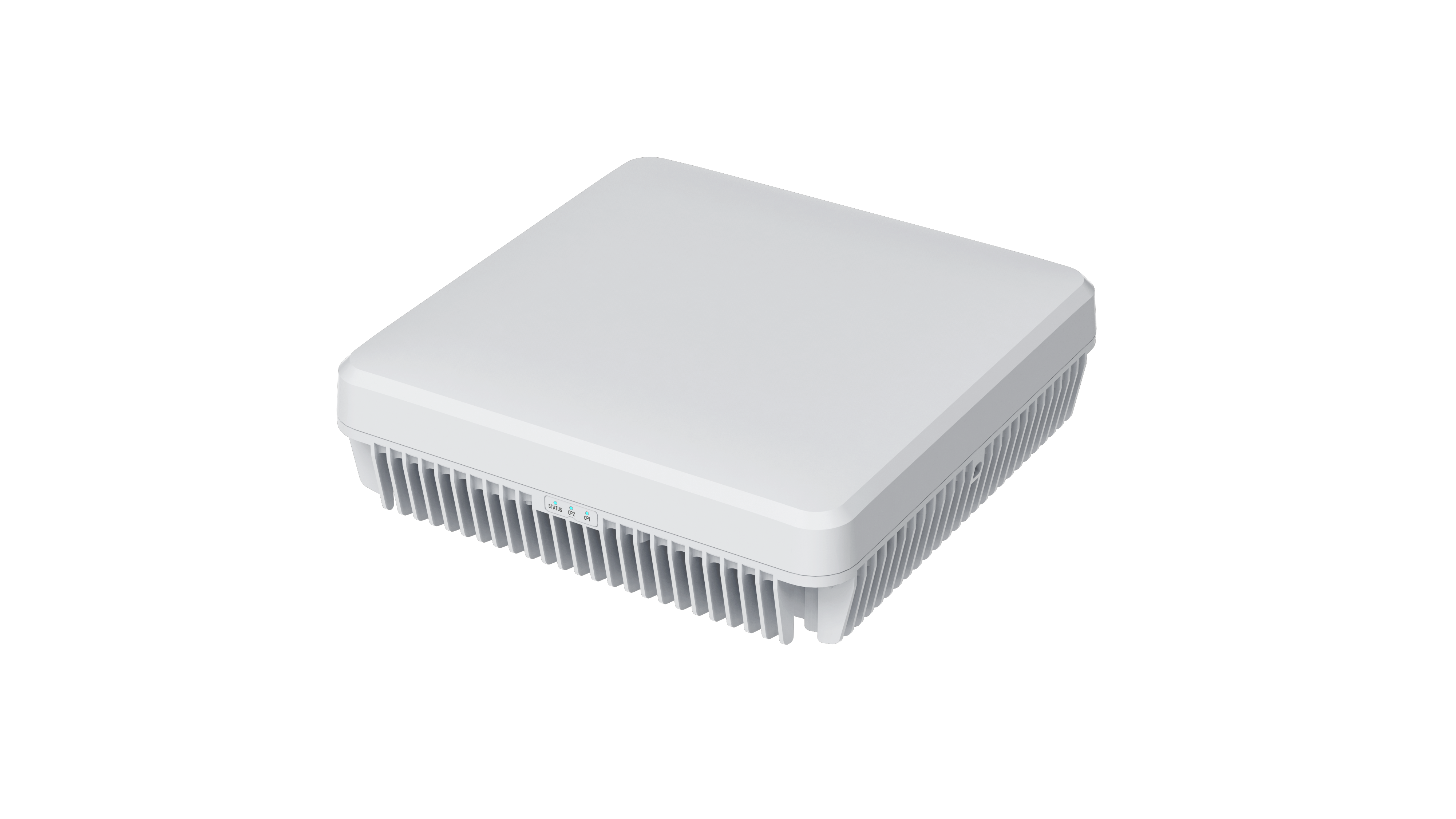

N3RU PLUS is a nano-power remote unit of SUNWAVE’s third-generation CrossFire platform (CrossFire 3.0). It connects to the A3/E3 via fiber, converts digital signals into RF, and radiates them through antennas. Each N3RU PLUS supports up to 12 channels (4 bands 2T2R + n77 4T4R), making it ideal for multi-band, multi-operator network deployments. It is available in both built-in antenna and external antenna versions. O-RAN support can be enabled through firmware upgrades.
| Frequency | 700 – 4200 MHz |
| Channel | 12 Channels (4 Bands 2T2R + N77 4T4R) |
| Volume | 5L |
| Bandwidth | 400 MHz per Channel |
| Output Power | Up to 27 dBm |
| Cooling | Passive |
| Cascade | Up to 6 Levels Cascade |
